General-Purpose TVS Diode

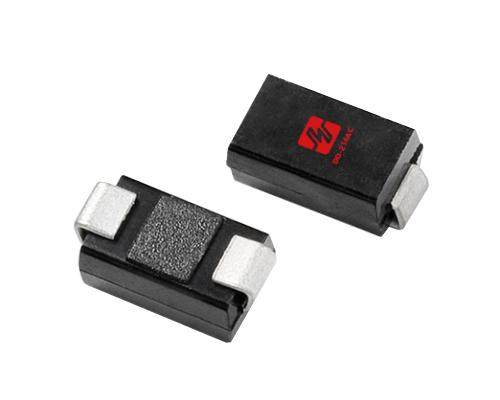

SMAJ15CAActive

SMAJ15CA is a high-performance bidirectional transient voltage suppression diode with a compact SMA package and 400W peak pulse power. It can respond quickly when voltage transients occur, effectively protecting electronic equipment from interference such as lightning strikes and inductive load switching.It is suitable for a variety of application scenarios such as communications, power supplies, and electronic control systems.

Datasheet Inquire Now

Electrical Parameters

Part Number SMAJ15CA

Package SMA

Polar Bi

Vrwm [Max] (V) 15

Vbr [Min] (V) 16.7

Vbr [Max] (V) 18.5

@ IT (mA)1

Vc@Ipp [Max] (V) 24.4

Ipp [Max] (A) 16.4

Ppp [Min] (W) 400

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
