General-Purpose TVS Diode

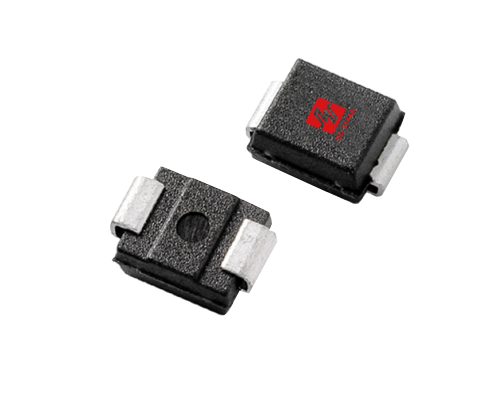

SMBJ33CAActive

SMBJ33CA is a bidirectional transient voltage suppression diode，specially designed to protect sensitive electronic equipment from transient voltages such as lightning, electrostatic discharge (ESD), and inductive voltage surges. The device is widely used in communications, industrial control, power systems, consumer electronics and other fields due to its fast response speed and strong surge absorption capability.

Datasheet Inquire Now

Electrical Parameters

Part Number SMBJ33CA

Package SMB

Polar Bi

Vrwm [Max] (V) 33

Vbr [Min] (V) 36.7

Vbr [Max] (V) 40.6

@ IT (mA)1

Vc@Ipp [Max] (V) 53.3

Ipp [Max] (A) 11.3

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
