General-Purpose TVS Diode

SMAJ5.0CAActive

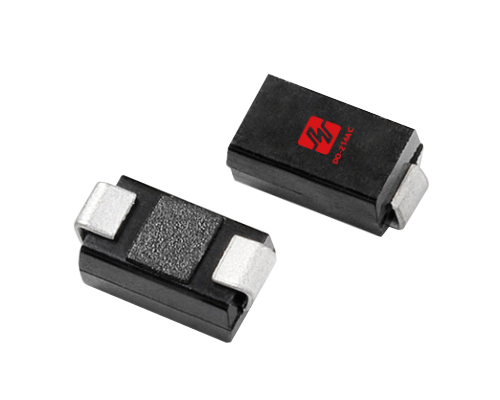

SMAJ5.0CA is a bidirectional transient voltage suppression diode in a compact SMA/DO-214AC package, suitable for high-density PCB layout. The device is specially designed to protect sensitive electronic equipment from transient voltages (such as ESD, lightning strikes, inductive load switching, etc.) and is widely used in communication equipment, industrial control systems, power management, consumer electronics and other fields.

Datasheet Inquire Now

Electrical Parameters

Part Number SMAJ5.0CA

Package SMA

Polar Bi

Vrwm [Max] (V) 5

Vbr [Min] (V) 6.4

Vbr [Max] (V) 7.0

@ IT (mA)10

Vc@Ipp [Max] (V) 9.2

Ipp [Max] (A) 43.5

Ppp [Min] (W) 400

IR [Max] (uA)800

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
